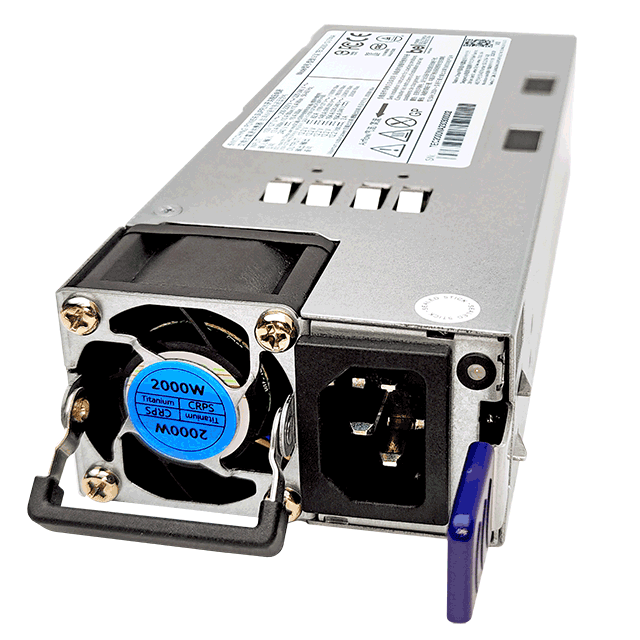

TEC2000-12-074xA is a 2000W Common Redundant Power Supply (CRPS) power supply that converts standard AC mains power or High Voltage DC bus voltages (HVDC) into a main output of 12 VDC for powering systems using distributed power architectures. The power supply is hot-swappable and supports N+1 redundant architecture. The high-power density helps to improve the overall system efficiency and enhance system reliability. The full digital control facilitates remote set-up, monitoring and control. TEC2000-12-074xA offers multiple protections including overvoltage, overtemperature, overcurrent, overpower & short circuit protection. 該電源符合國際安全標(biāo)準(zhǔn),并可展示歐洲低電壓指令(LVD)的 CE 標(biāo)志。收起閱讀 -
規(guī)格
80 PLUS 白金效率。
輸入電壓 90-264 VAC / 180-300 VDC
輸出電壓 12 VDC
+12 VSB (2.1A) Standby Output
Output Power up to 2000W
外形尺寸:185 x 73.5 x 40 mm (7.28 x 2.89 x 1.57 in)
Meets 62368-1
特性
Intel Standard CRPS Form Factor I High Power Density I Supports N+1 Redundancy, Cold Redundancy, Internal Oring I Black Box Recorder, Bootloader I Clockwise and Counter-Clockwise Fan Rotation I Supports Power Management Bus Communication Protocol
