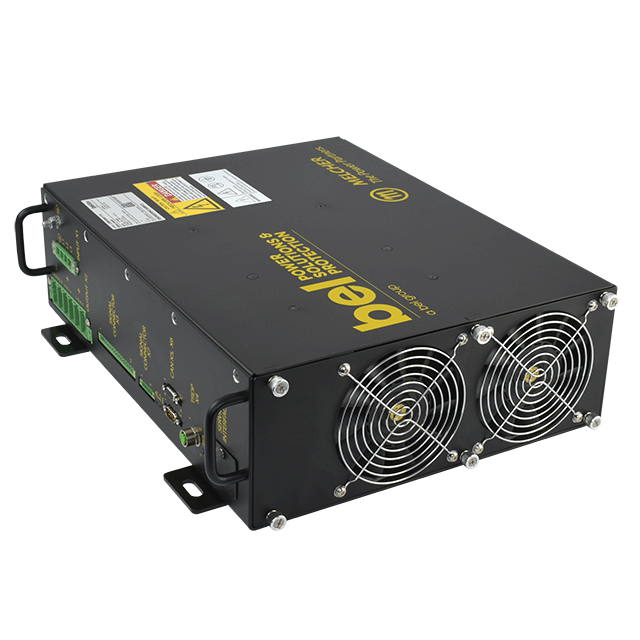

AC-DC 電源 LBM 系列 - 電池充電器 LBM15000-1110Sxxx
- Bel Power Solution
- : 暫無價格
-
累计评价0 - :AC-DC 電源 LBM15000-1110Sxx
- :全國
- :臺
- :350-528VAC
- :-40 至 70
- : 10000
-
- 029-85395956
- 13522494281
|
封閉式大功率電源
在單個裝置中提供高達 7kW 的各種大功率 AC-DC 電源。這些產品提供單相和三相輸入,可服務于各種工業、廣播和電信應用。
規格
Output power up to 15 kW
Nominal output voltage for 110V battery (adjustable 80 – 140 VDC)
High power density 12.2 W/in3 per unit
典型效率為 93%
400/480 Vrms 3 相 50/60 Hz 輸入電壓范圍(無中性),PF > 0.94
-40 to 70°C of operating ambient temperature
特性
Parallel operation of max. 4 units
CAN 總線/以太網接口
Shelf comprises of 2 power units, 1 DSP controller board and cable harness
Compliant to Railway standards EN 50155, EN 50121-3-2, EN 50533, EN 45545 (HL3), NFPA 130, EN 50657, EN 50128, EN 50129, IEC 62443-4-1 / 4-2
